UV Printer

Description

A UV printer is a digital printing machine that uses specialized inks and ultraviolet light to print and instantly cure designs directly onto almost any surface. Because the ink solidifies immediately on contact, it does not soak into the material, allowing for vibrant, high-definition, and highly durable custom prints.

Specification

• Model- BS 6090 TRIPLE HEAD
• Print Head-3* EPSON XP600 Industrial Grade
• Colors Channels-CMYK+W+VARNISH
• Resolution- 360/ 720/ 1440*2880dpi
• Output- White or Colors, White+ colors, White+ colors +Varnish
• Print size- 600*900mm
• Software- Main TOP RIP
• System- All window system
• Ink supply system- Continue ink supply + circulation system
• Ink consumption- 10-15ml/Square meter
• Speed-6-12pass @ 15-35 min/ Square meter
• Max print height- 0-150mm
• Precision- Reach 0.3mm
• Port- USB2.0
• Power- Max 500Watt
• Image form- TIFF/JPG/EPS/PDF
• Flash- Auto flash Jetting
• UV LED Power- 50w curing UV LED with Fan cooling
• Work Voltage- AC110v-220v/50-60HZ
• Net/Gross weight- 160kg / 210kg

Description

A UV printer is a digital printing machine that uses specialized inks and ultraviolet light to print and instantly cure designs directly onto almost any surface. Because the ink solidifies immediately on contact, it does not soak into the material, allowing for vibrant, high-definition, and highly durable custom prints.

Specification

Model-BS – 5060UV
Print Head – 2*XP600 Printheads Industrial Grade
Colors Channels – CMYK +W or CMYK+W+V
Resolution – 360/ 720/ 1440*2880dpi
Output – White or Colors, White+ colors, White+ colors +Varnish
Print Size – 500*600mm
Software – Main TOP / RIIN RIP
System – All windows system
Ink Supply System – Continue ink supply+ circulation system
Ink Consumption – 10-15ml/ Square meter
Speed – 6-8pass @ 60-120 min/ Sqaure meter
Max Print Height – 0-150mm
Precision – Reach 0.3mm
Port – USB2.0
Power – Max 600Watt
Image Format -TIFF/JPG/EPS/PDF
Flash – Auto flash Jetting
UV LED Power – 0-80Watt adjustable with fan cooling
Work Voltage – AC110V-220V/50-60HZ
Machine Size – L1250mm*W1060mm*H640mm
Rotary Printing – Support Rotary printing
Net/Gross Weight – 120kg / 145kg
Packing List – USB cable, power cable, UV ink+ varnish
(500ml each bottle), software, cleaning
tool set.

Description

A UV printer is a digital printing machine that uses specialized inks and ultraviolet light to print and instantly cure designs directly onto almost any surface. Because the ink solidifies immediately on contact, it does not soak into the material, allowing for vibrant, high-definition, and highly durable custom prints.

Specification

• Model- BS-A3PLUS XP600 Dual
• Print Head-2* EPSON XP600 Industrial Grade
• Colors Channels-CMYK+W+VARNISH
• Resolution- 360/ 720/ 1440*2880dpi
• Output- White or Colors, White+ colors, White+ colors +Varnish
• Print size- 330*600mm
• Software- Main TOP RIP
• System- All window system
• Ink supply system- Continue ink supply + circulation system
• Ink consumation- 10-15ml/Square meter
• Speed-6-8pass @ 60-120 min/ Square meter
• Max print height- 0-150mm
• Precision- Reach 0.3mm
• Port- USB2.0
• Power- Max 500Watt
• Image form- TIFF/JPG/EPS/PDF
• Flash- Auto flash Jetting
• UV LED Power- 50w curing UV LED with Fan cooling
• Work Voltage- AC110v-220v/50-60HZ
• Machine size- L90cm* W49cm*H59cm
• Rotary printing- Support Rotary printing
• Net/Gross weight- 96kg/ 120kg

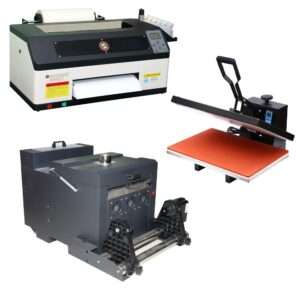

Technical Specifications:

• Print Head: Dual XP600
• Print Size: A3 (Up to 13 inches)
• Printing Speed: High-speed production mode
• Ink Type: DTF Pigment Ink (CMYK + White)
• Media Type: PET Film
• Software: RIP Software Supported
• Power Supply: Standard 220V

Applications:

✔ Custom T-Shirts Printing
✔ Hoodie & Garment Printing
✔ Corporate Uniforms
✔ Promotional Merchandise
✔ Personalized Gifts

Description

A UV printer is a digital printing machine that uses specialized inks and ultraviolet light to print and instantly cure designs directly onto almost any surface. Because the ink solidifies immediately on contact, it does not soak into the material, allowing for vibrant, high-definition, and highly durable custom prints.

Specification

• Model- BS 6090 FOUR HEAD
• Print Head-4* EPSON XP600 Industrial Grade
• Colors Channels-CMYK+W+VARNISH
• Resolution- 360/ 720/ 1440*2880dpi
• Output- White or Colors, White+ colors, White+ colors +Varnish
• Print size- 600*900mm
• Software- Main TOP RIP
• System- All window system
• Ink supply system- Continue ink supply + circulation system
• Ink consumption- 10-15ml/Square meter
• Speed-6-12pass @ 15-35 min/ Square meter
• Max print height- 0-150mm
• Precision- Reach 0.3mm
• Port- USB2.0
• Power- Max 500Watt
• Image form- TIFF/JPG/EPS/PDF
• Flash- Auto flash Jetting
• UV LED Power- 50w curing UV LED with Fan cooling
• Work Voltage- AC110v-220v/50-60HZ
• Net/Gross weight- 160kg / 210kg

Description

A UV printer is a digital printing machine that uses specialized inks and ultraviolet light to print and instantly cure designs directly onto almost any surface. Because the ink solidifies immediately on contact, it does not soak into the material, allowing for vibrant, high-definition, and highly durable custom prints.

Key Features:

• Superior Print Quality
  Achieve photo-quality prints with high-resolution output, sharp details, and rich color depth on all types of garments.

• Direct Fabric Printing
  Print directly onto cotton, blended fabrics, and other materials without the need for transfer paper.

• Eco-Friendly Inks
  Uses water-based, non-toxic inks that are safe for both users and the environment.

• User-Friendly Operation
  Easy-to-use interface with minimal setup time, making it ideal for beginners and professionals alike.

• Fast Production Speed
  Designed for both small and bulk orders with consistent and efficient printing performance.

• Low Maintenance & Cost-Effective
  Durable components and efficient ink usage reduce operational costs and downtime.

Applications:

• Custom T-shirt printing

• Corporate branding apparel

• Personalized gifts

• Fashion and retail businesses

• Print-on-demand services
