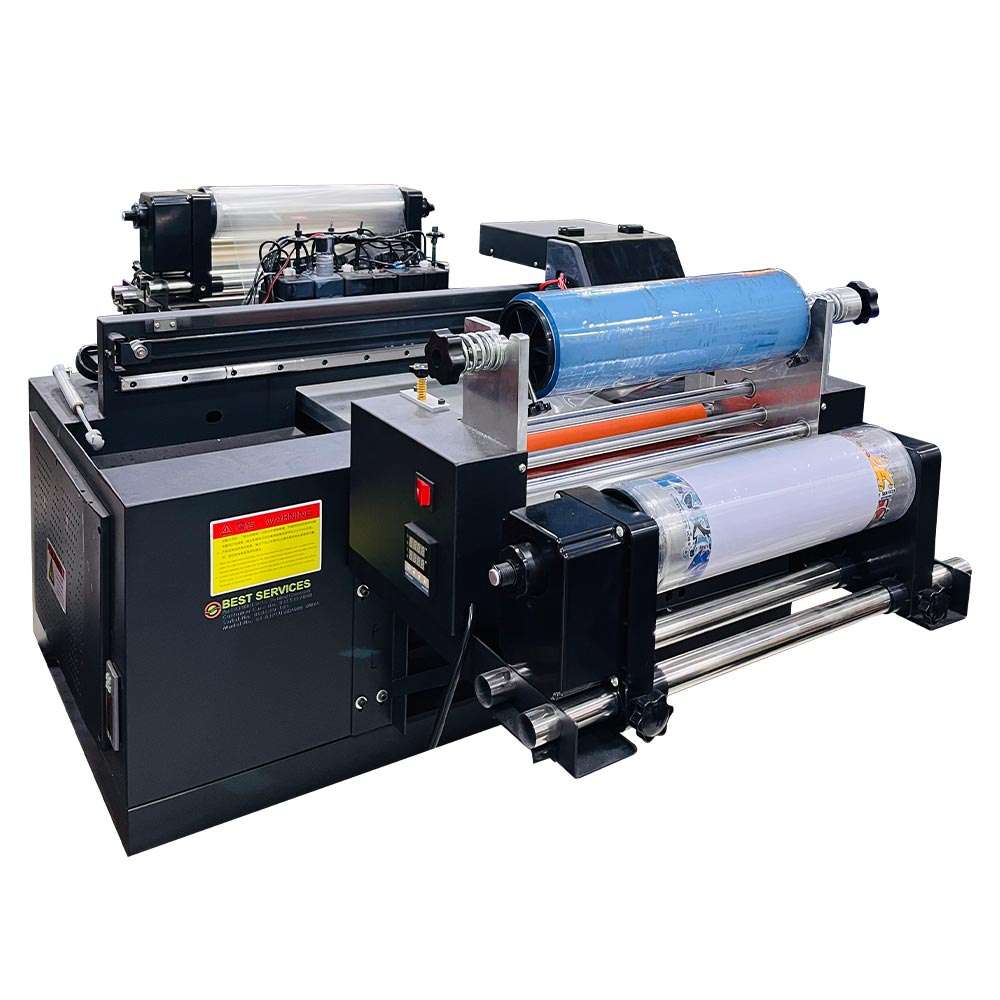

UV FLATBED PRINTER WITH ROLL ATTACHMENT DUAL HEAD A3 PLUS- BS3360 (XP600)

Description

A UV printer is a digital printing machine that uses specialized inks and ultraviolet light to print and instantly cure designs directly onto almost any surface. Because the ink solidifies immediately on contact, it does not soak into the material, allowing for vibrant, high-definition, and highly durable custom prints.

Specification

• Model- BS-A3PLUS XP600 DUAl
• Print Head-2* EPSON XP600 Industrial Grade
• Colors Channels-CMYK+W+VARNISH
• Resolution- 360/ 720/ 1440*2880dpi
• Output- White or Colors, White+ colors, White+ colors +Varnish
• Print size- 330*600mm
• Software- Main TOP RIP
• System- All window system
• Ink supply system- Continue ink supply + circulation system
• Ink consumation- 10-15ml/Square meter
• Speed-6-8pass @ 60-120 min/ Square meter
• Max print height- 0-150mm
• Precision- Reach 0.3mm
• Port- USB2.0
• Power- Max 500Watt
• Image form- TIFF/JPG/EPS/PDF
• Flash- Auto flash Jetting
• UV LED Power- 50w curing UV LED with Fan cooling
• Work Voltage- AC110v-220v/50-60HZ
• Machine size- L90cm* W49cm*H59cm
• Rotary printing- Support Rotary printing
• Net/Gross weight- 96kg/ 120kg

UV Printer Description

Technology: A specialized digital printing machine that uses Ultraviolet (UV) light to instantly cure (dry) the ink as it is printed.
​Applications: Directly prints on a wide variety of rigid and flat surfaces, including wood, glass, acrylic, plastic, phone covers, canvas, leather, and metal.

​Key Features:

Instant Curing: UV light instantly dries the ink upon application.
​High Quality & Durability: Prints are long-lasting, waterproof, and scratch-resistant.
​3D & Embossed Effects: Allows layering of ink to create raised textures and 3D printing effects.

Specification

1. Model- BS 6090 TRIPLE HEAD
2. Print Head-3* EPSON i3200 Industrial Grade
3. Colors Channels-CMYK+W+VARNISH
4. Resolution- 360/ 720/ 1440*2880dpi
5. Output- White or Colors, White+ colors, White+ colors +Varnish
6. Print size- 600*900mm
7. Software- Main TOP RIP
8. System- All window system
9. Ink supply system- Continue ink supply + circulation system
10. Ink consumption- 10-15ml/Square meter
11. Speed-6-12pass @ 15-35 min/ Square meter
12. Max print height- 0-150mm
13. Precision- Reach 0.3mm
14. Port- USB2.0
15. Power- Max 500Watt
16. Image form- TIFF/JPG/EPS/PDF
17. Flash- Auto flash Jetting
18. UV LED Power- 50w curing UV LED with Fan cooling
19. Work Voltage- AC110v-220v/50-60HZ
20. Net/Gross weight- 160kg / 210kg
